Vision Plus Status 570 Aerial Directional TV / Radio Antenna

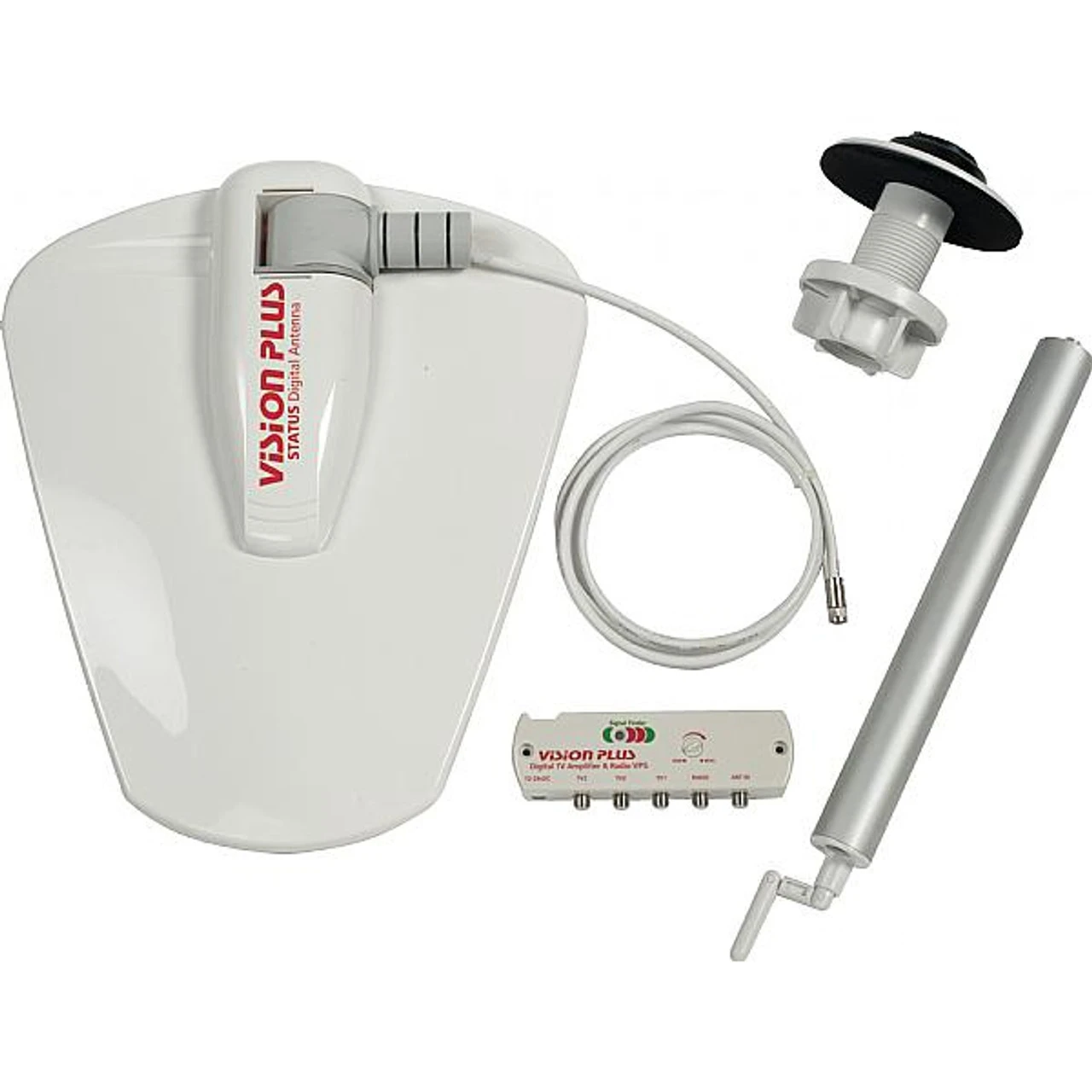

Status 570 Caravan TV Aerial

The all new Status 570 Caravan TV Aerial takes its lead from the eminently popular and successful Status 550 TV Antenna, but has improved upon it with an assortment of new and enhanced features for the digital age.

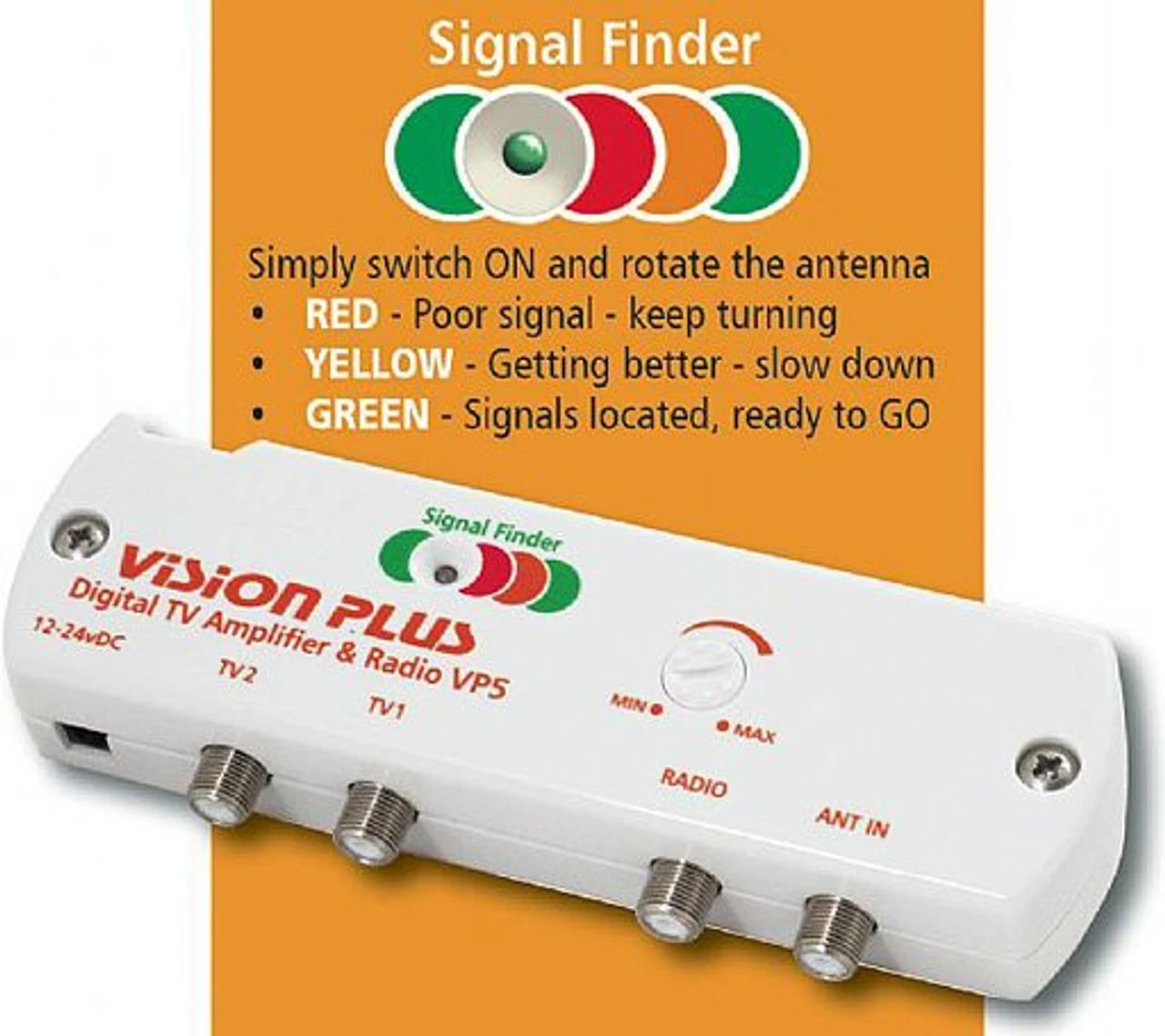

With the ability to tune your TV in mere seconds, the Status 570 Caravan TV Aerial also features fixed FM radio antennas, Digital TV, DAB and FM radio reception, and thanks to its unique integrated TV signal finder (Vision Plus VP5 Digital TV Amplifier) comes equipped with a dedicated TV transmitter locator as well as a variable gain control to accommodate for strong and weak signal areas.

With its slim line, compact design and sleek contoured, roof assembly, the Status 570 Caravan TV Aerial provides an unobtrusive and smart appearance, whilst an LED light power indicator is provided to help you monitor the signal strength (in red, yellow and green) with ease.

Status 570 Caravan TV Aerial features and specifications:

• Horizontal & Vertical Polarisation Indicator
• 2 TV Connections and 1 dedicated Radio connection
• 12 – 24V DC Power Input connection
• Antenna IN connection
• On / Off Power switch
• 2 year guarantee
• Mast Length 330mm

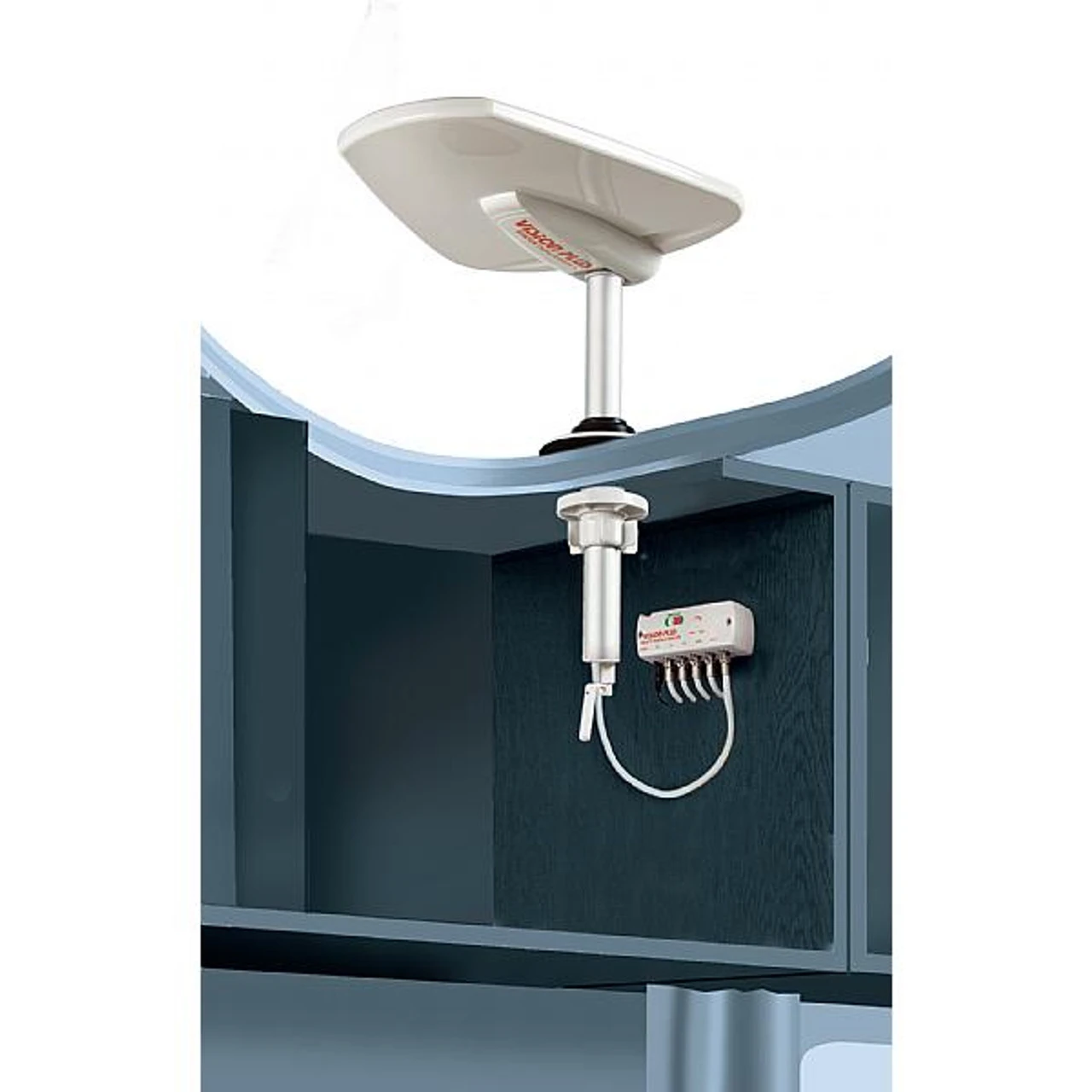

• Mast intrusion into locker 305-280mm

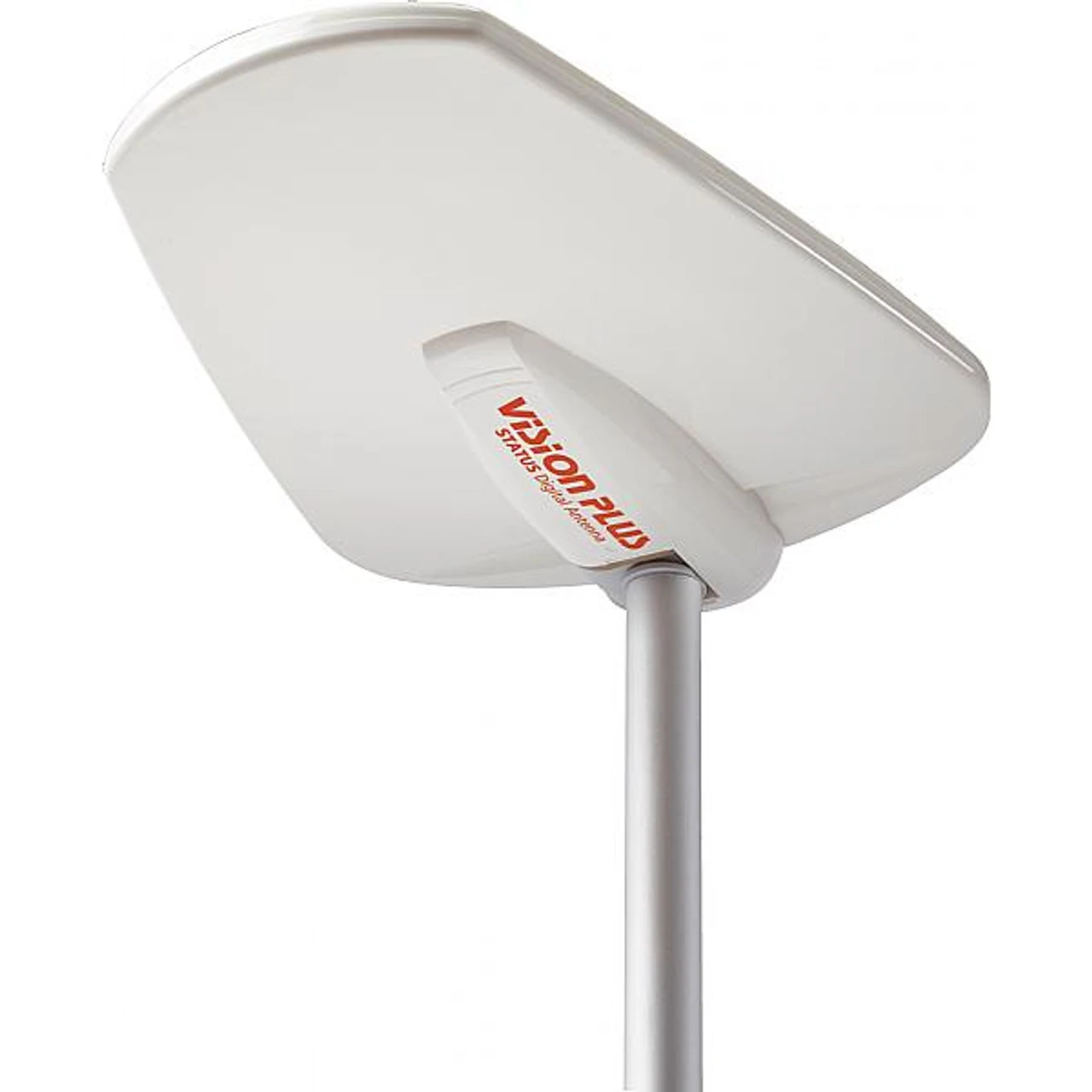

• Antenna dome Installed – Length 530mm – Width 340mm – Height 125mm
• Mounting Foot & Gaiter – Diameter 122mm – Height 35mm – Roof cavity range 25-50mm

Please note: The roof mounting assembly kit supplied with the Status 570 Caravan TV Antenna System is not suitable for sloping roofs.
