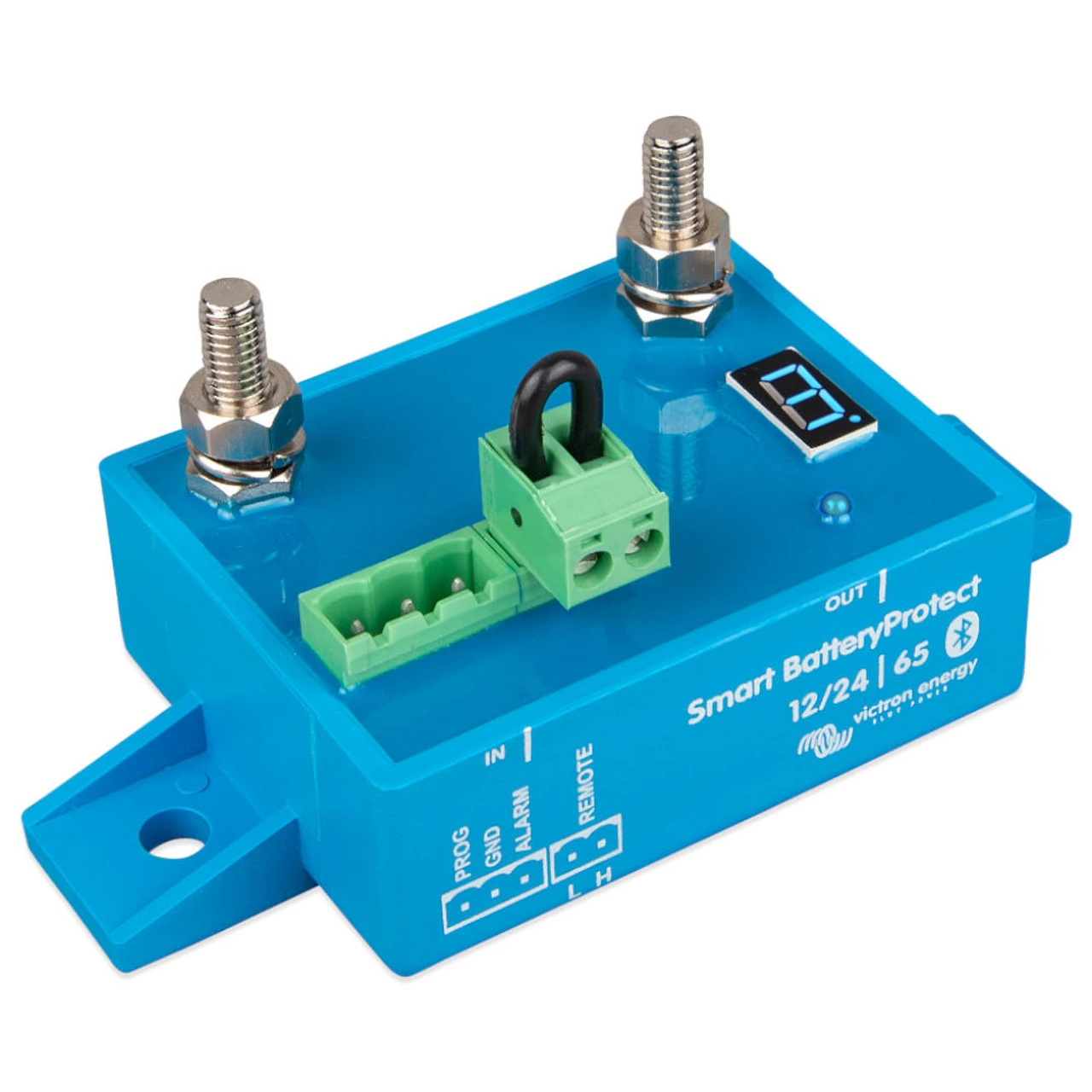

Victron Energy Smart BatteryProtect 65A

Overview

Prevent excessive battery discharges damaging your battery with the Bluetooth enabled Victron Smart BatteryProtect. Operating on 12 or 24v systems, this Smart BatteryProtect is rated to a maximum continuous load of 65A and will automatically detect system voltage during the installation process.

Simple installation and configuration

With a small and discreet footprint, clear labelling and M6 connection size, the Smart BatteryProtect with bluetooth programming makes installation and configuration simple and easy. Programmable engage/disengage levels are set via the Victron Connect app.

Ultra-low power consumption

Long term running of the Smart BatteryProtect is possible due to the ultra-low power consumption of 1.4mA and protective load disconnect delay of 90 seconds following a detection of the battery voltage dropping below the preset level.

Victron Energy Smart BatteryProtect BP-65 Specifications

• Maximum continuous load current: 65A
• Peak current (during 30 seconds): 250A
• Operating voltage range: 6-35VDC
• Current consumption: BLE On – 1.4mA BLE Off – 1.2mA
• Alarm output delay: 12 seconds
• Load disconnection delay: 90 seconds
• Default thresholds:
  • Disengage – 10.5V or 21V
  • Engage – 12V or 24V
• Weight: 0.2kg
• Dimensions (h x w x d): 40 x 48 x106mm

Get the Victron Connect App

All settings of the Victron Smart BatteryProtect can be configured with the VictronConnect App

Click the Manual below to see the Victron Connect guide
