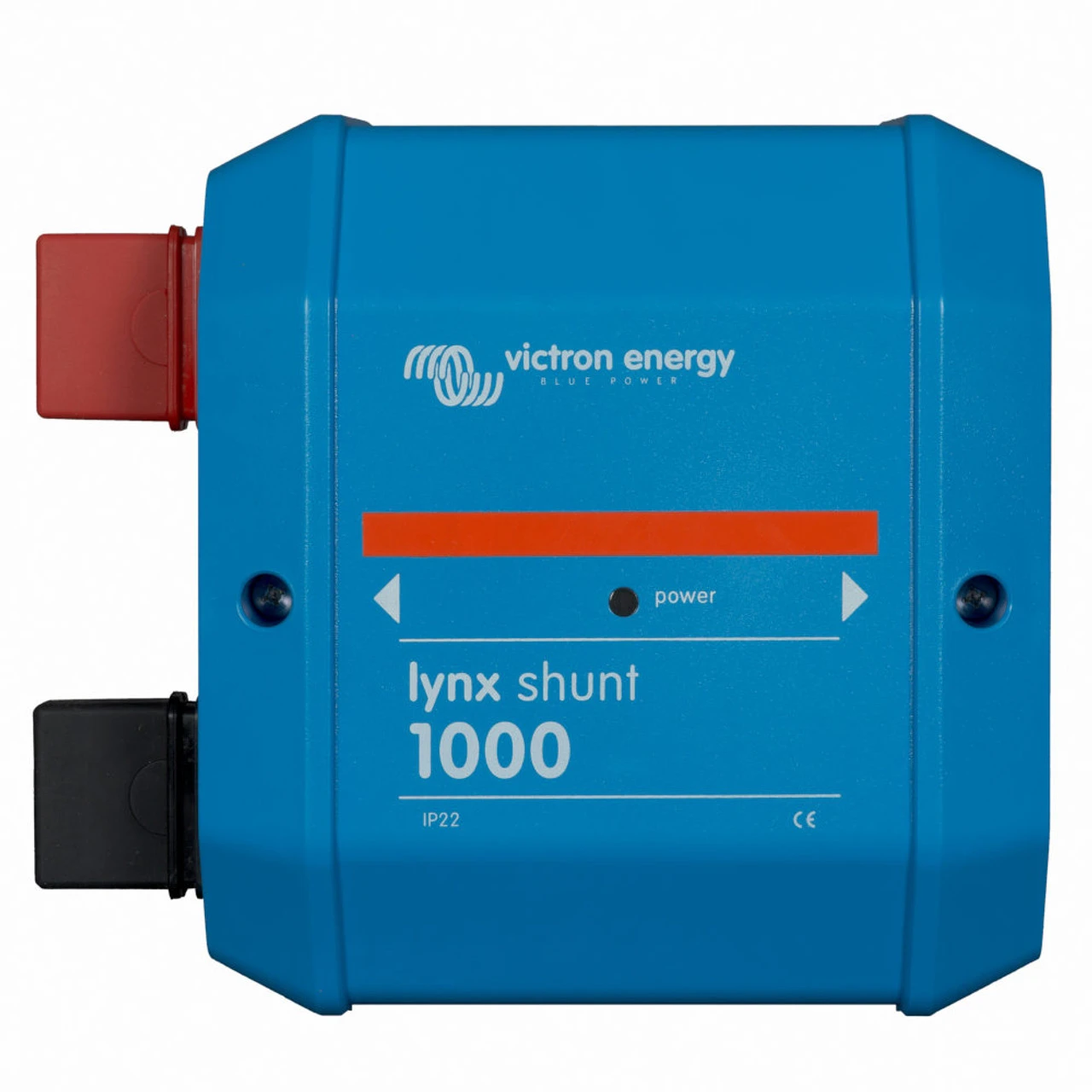

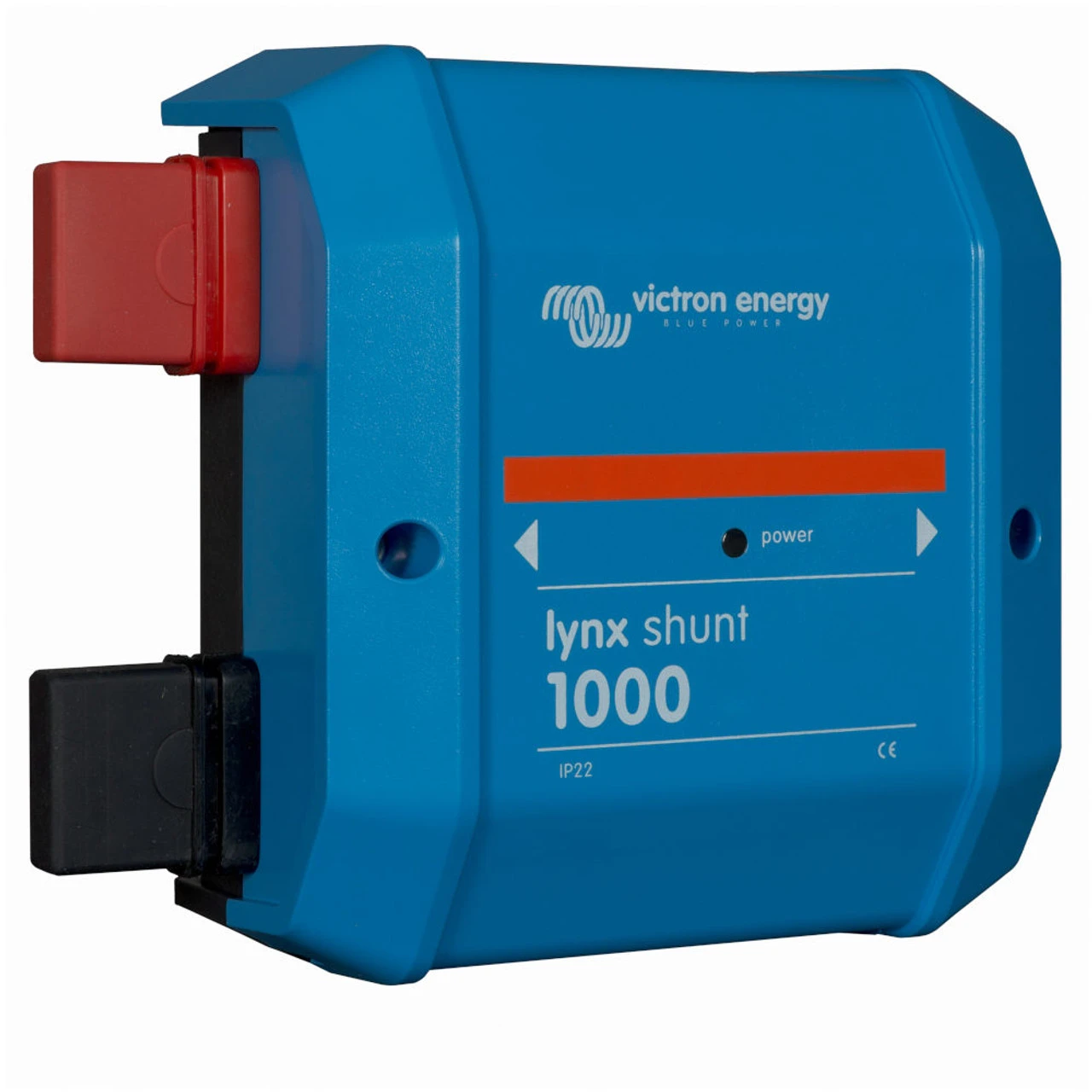

Victron Energy Lynx Shunt VE.Can

Intelligent shunt with built-in battery monitor

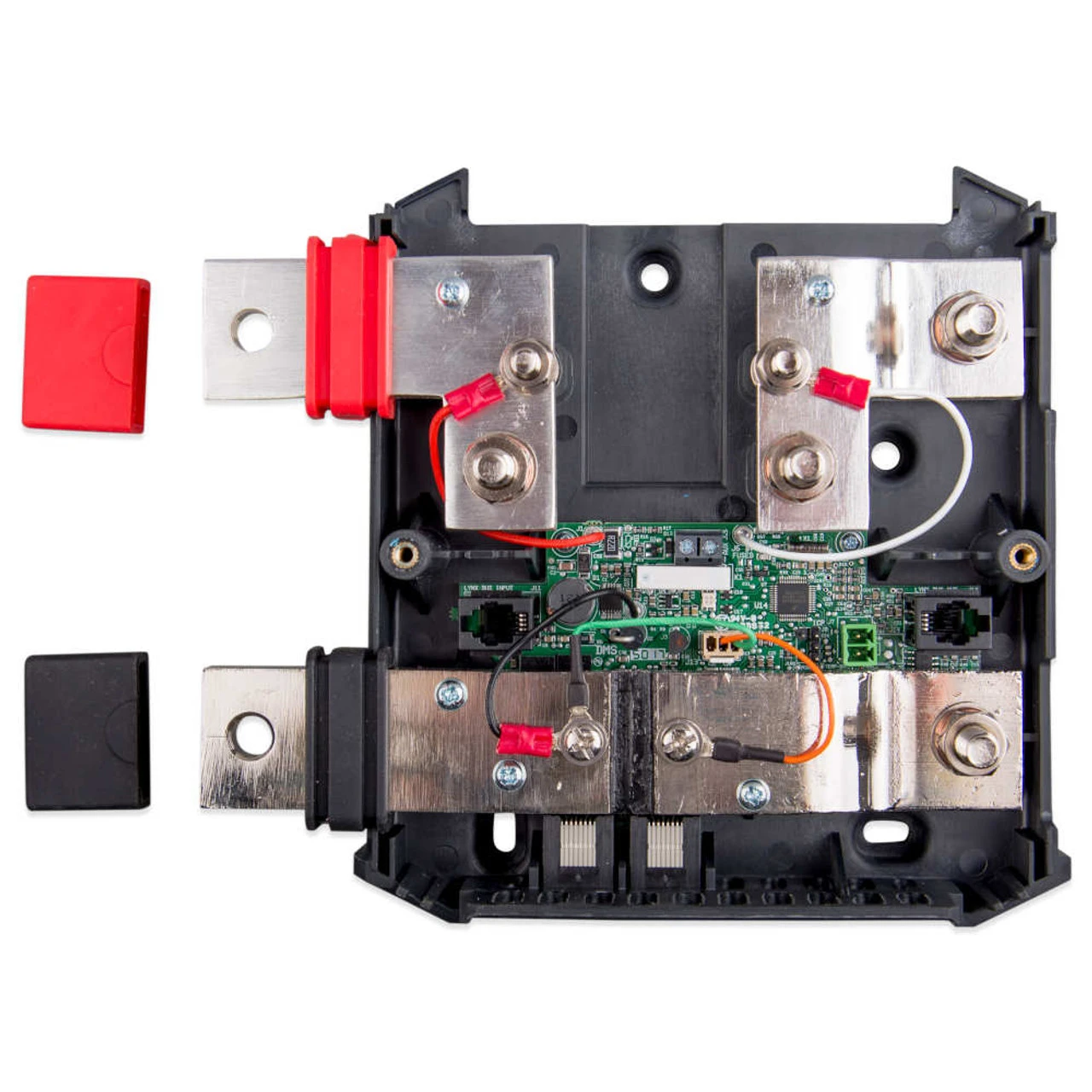

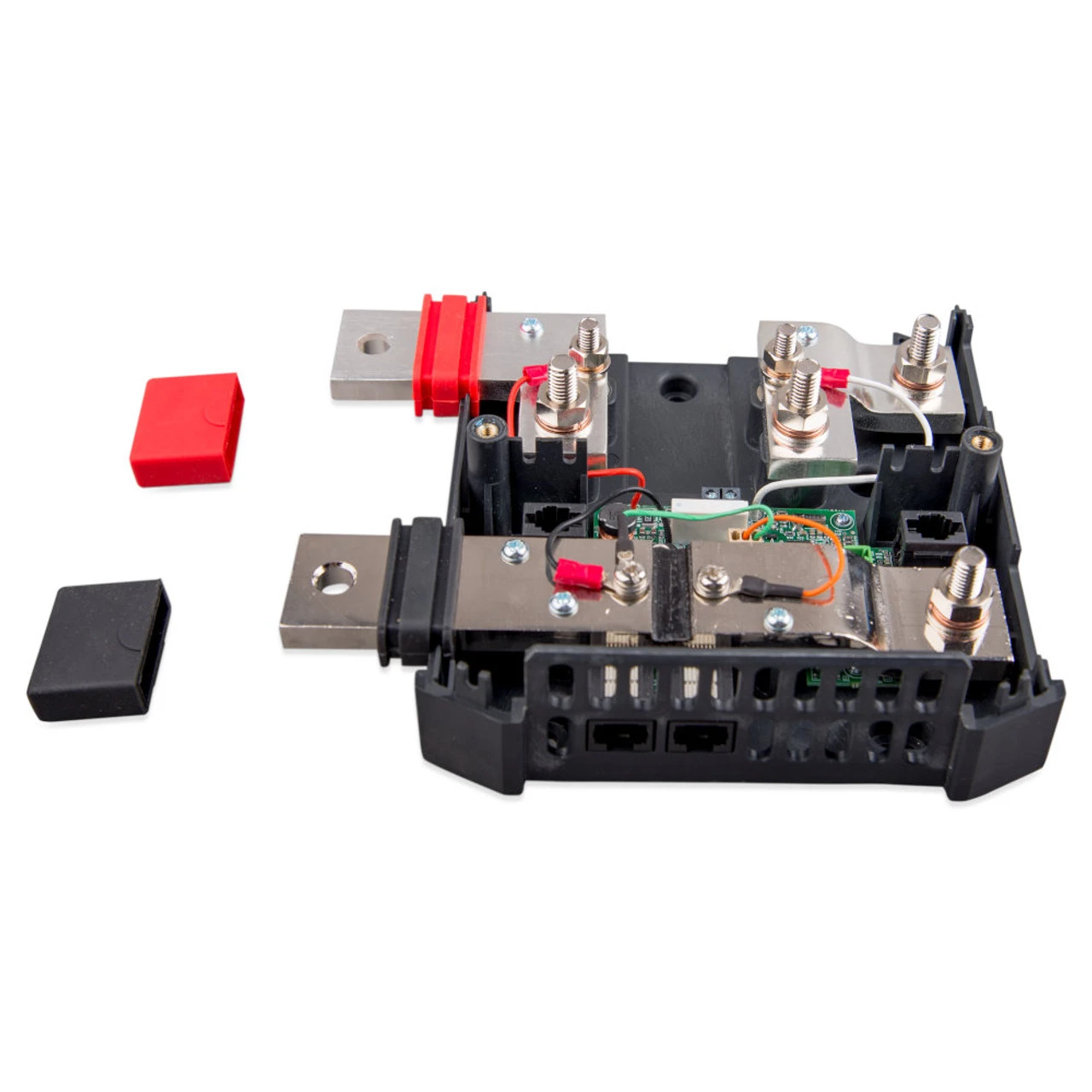

Consisting of a positive and negative busbar, battery monitor and main system fuse holder, this Lynx Shunt VE.Can can form part of the Lynx Distribution system or be utilised as a standalone battery monitor. The main fuse status is indicated with a power LED and, on compatible systems, an alarm message can be sent to a GX device.

Programmable alarm relay

The Victron Lynx Shunt VE.Can alarm relay can be programmed via a GX device to activate under certain operating conditions, including battery voltage, battery temperature, state of battery charge or blown system main fuse.

Battery Monitoring Compatibility

This intelligent 1000A current rated shunt module can be used with all battery types including lithium that have a battery management system (BMS). Please note that when used with Victron’s Lithium Smart Batteries, the Lynx Smart BMS must be used.

Victron Energy Lynx Shunt VE.Can Specifications

• Supply Voltage: 9-70VDC
• Supported System Voltages: 12/24/48V
• Continuous Current Rating: 1000A
• Power Consumption:
  • 60mA @ 12V
  • 33mA @ 24V
  • 20mA @ 48V
• Busbar Connection Size: M8
• Fuse Connection Size: M8
• VE.Can Connector: RJ45
• Dimensions (h x w x d): 190 x 180 x 80mm
• Weight: 1.4kg
• IP Rating: IP22
