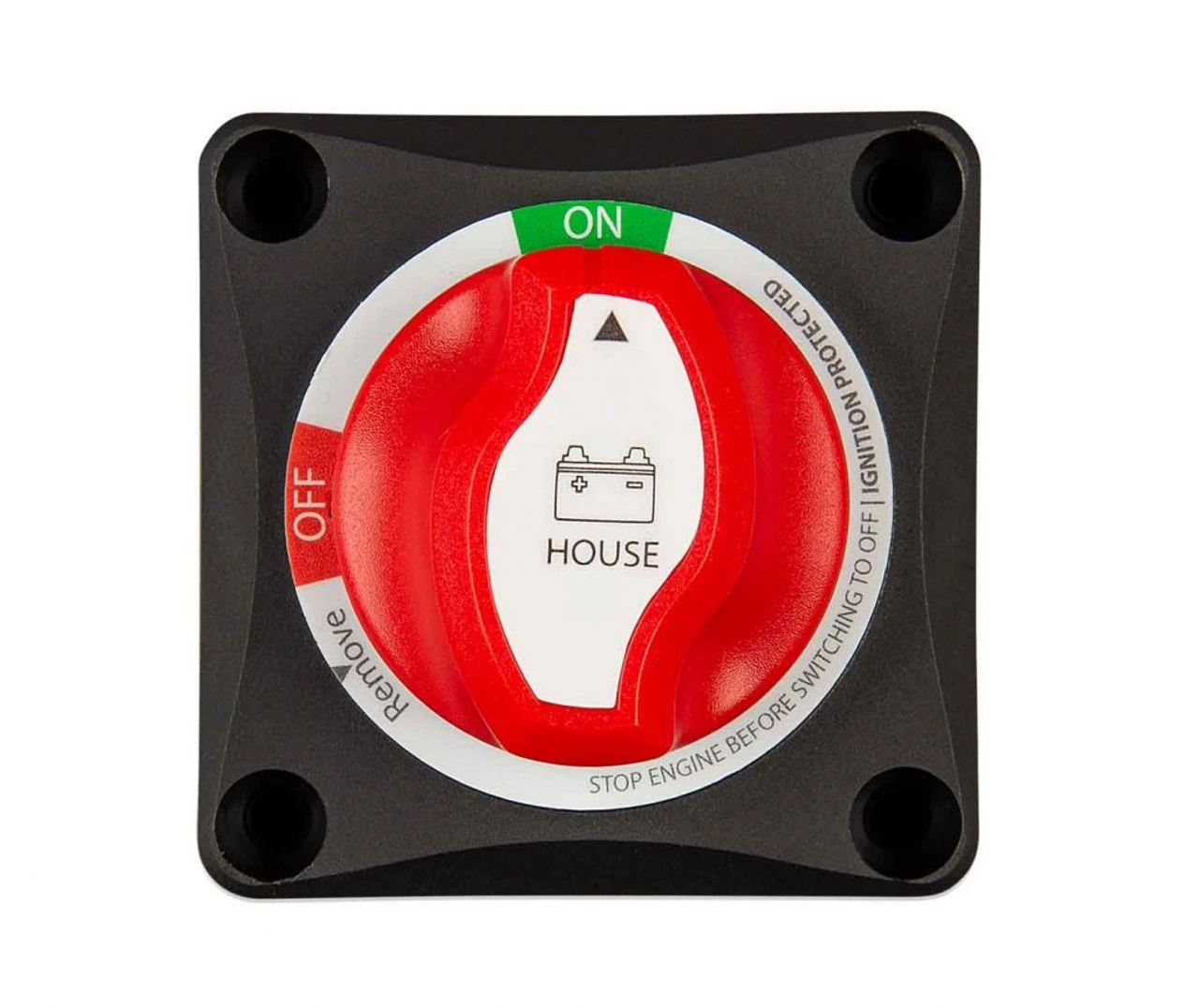

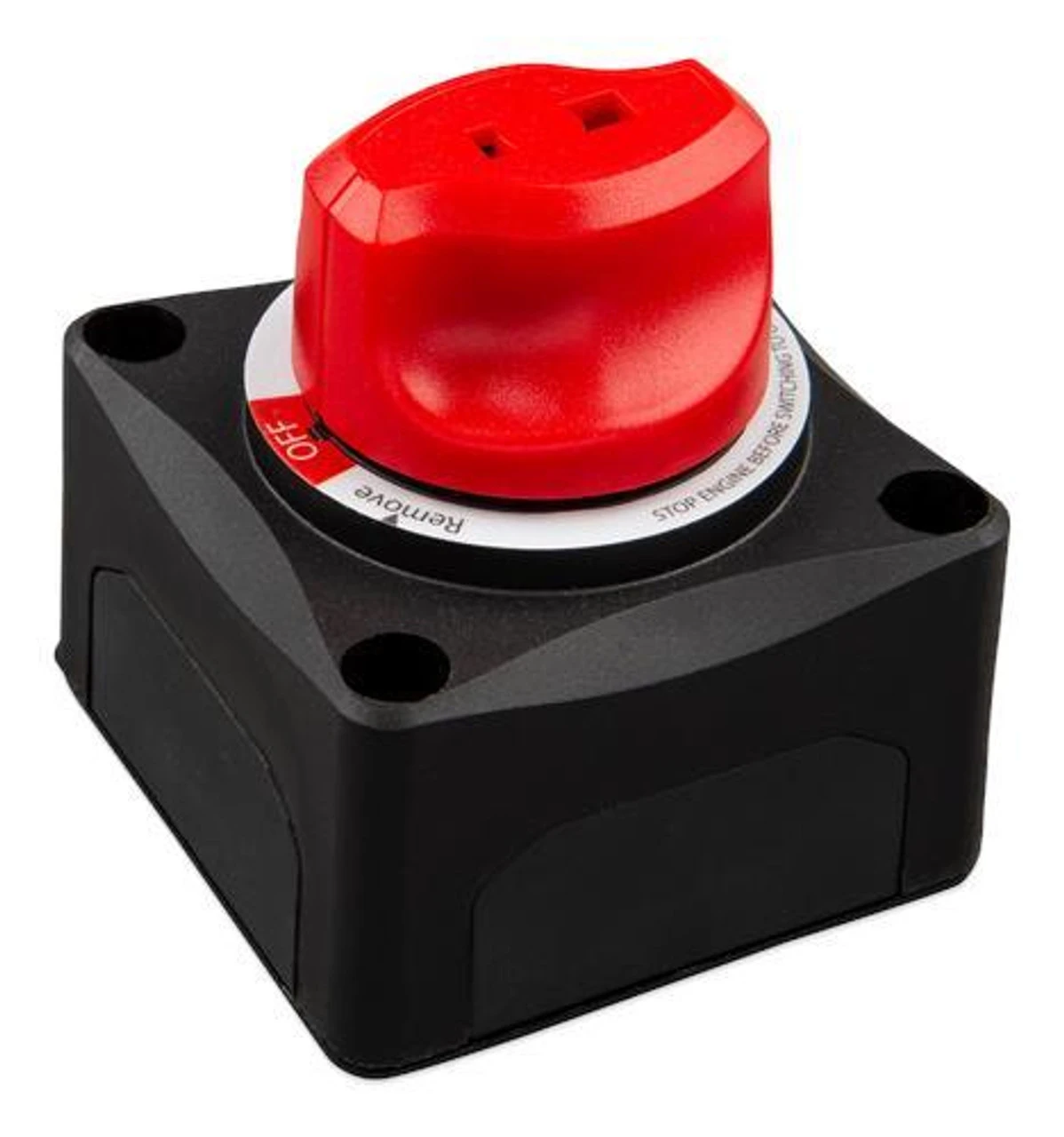

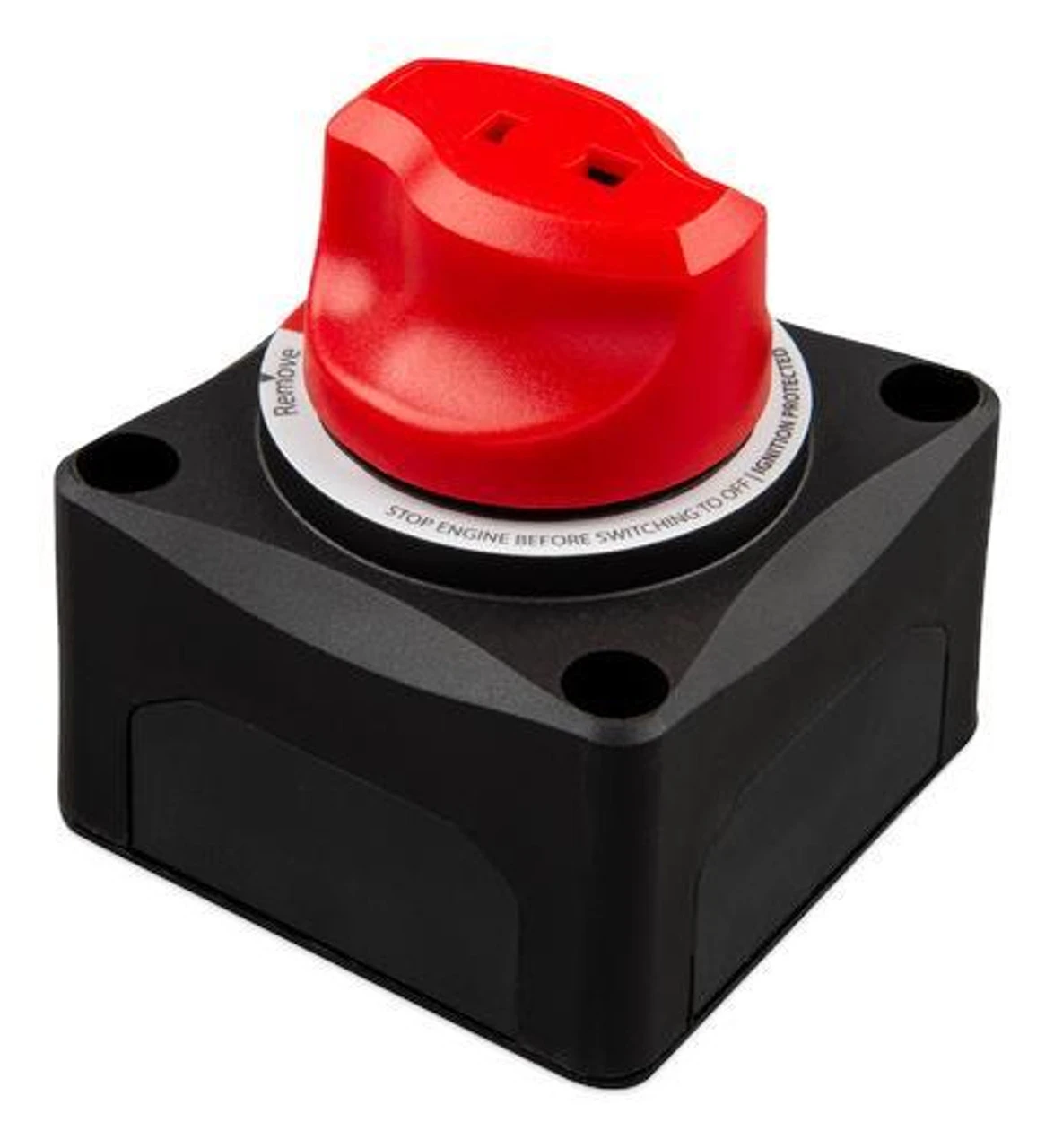

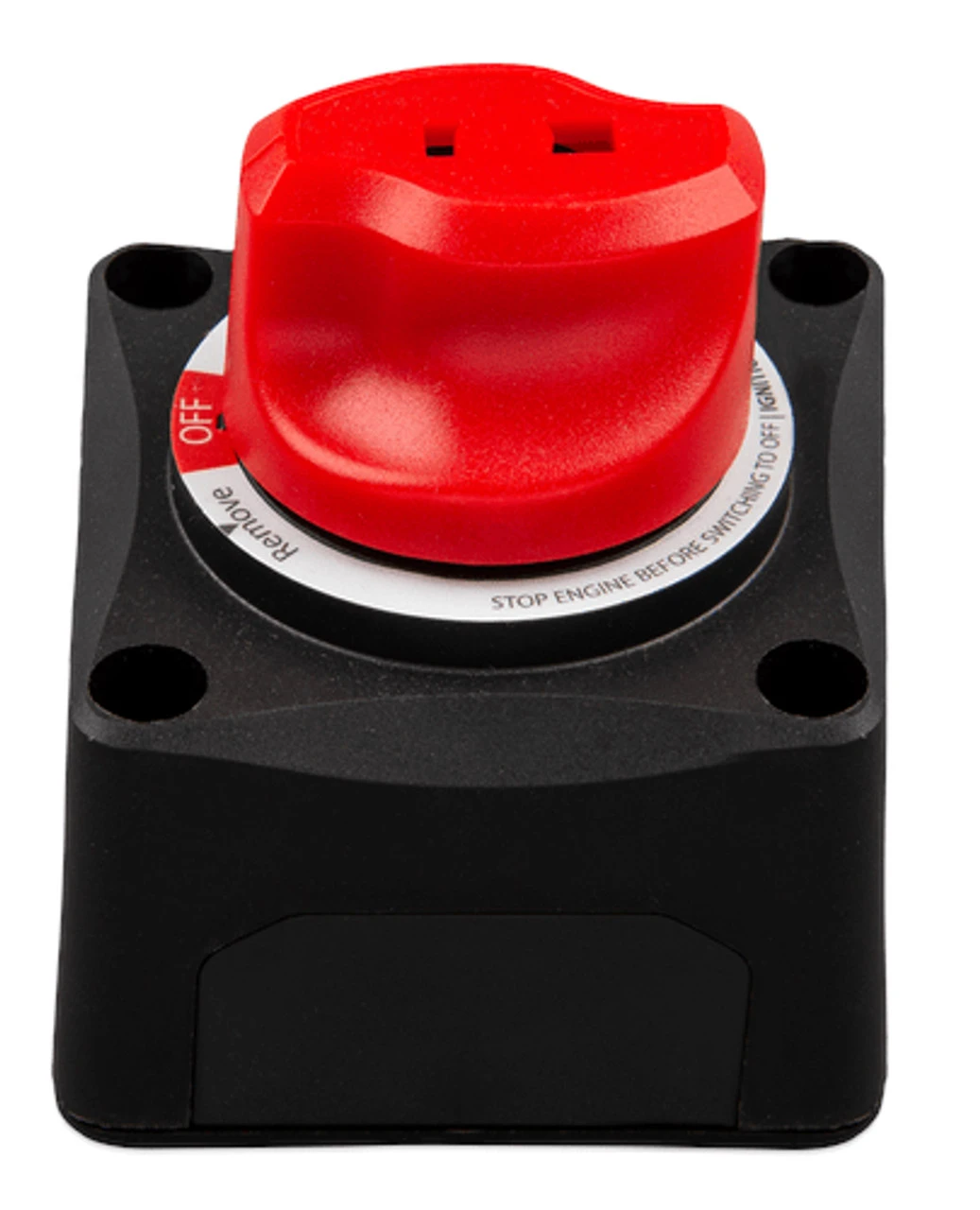

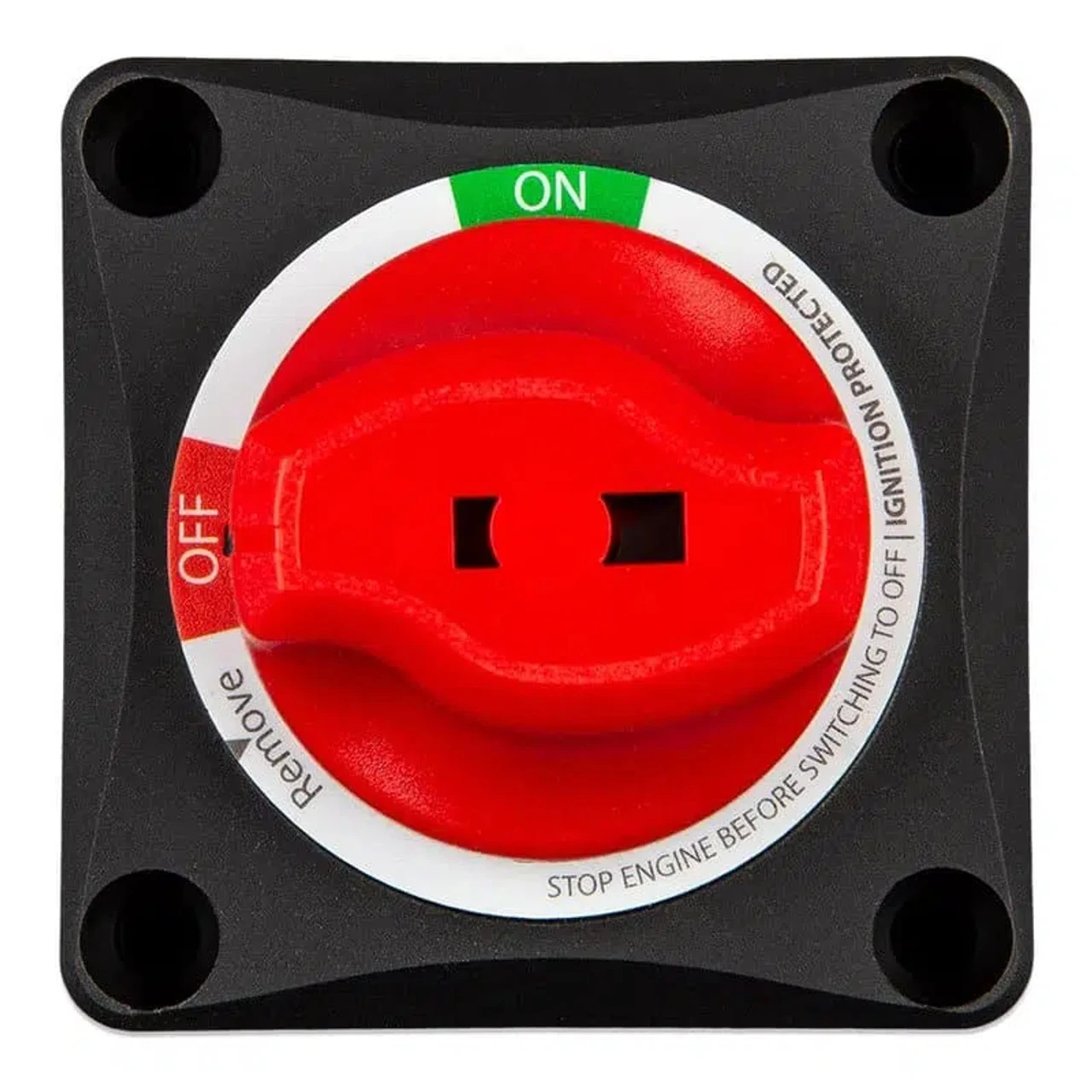

Victron Energy Battery Isolator Switch 275A

Safely disconnect your battery – ideal for preventing winter battery drain

This battery isolator switch can be used to isolate leisure batteries from DC loads or charge sources. When fitted, it can preserve battery charge in unattended systems e.g. in a caravan over winter. It can also be used to create a parallel connection to a secondary starter battery to jump-start in emergencies. It can be surface or panel mounted, and comes with 16 stickers to customise it for your application.

Suitable for 12v, 24v and 48v systems in campervans, caravans, motorhomes, boats and other off-grid environments.

Part no. VBS127010010

Technical Specifications:

Max. continuous current:

275 A

One minute rating:

455 A

Cranking rating:

1250 A

Voltage Rating:

48 V

Terminal material:

Tin-plated copper

Hex nut material:

Tin-plated copper

Terminal diameter:

3/8 inch / 9.53 mm

Recommended torque:

70 lbf-inch / 8 Nm

Base material:

Glass fibre reinforced nylon

Weight:

0.2 kg

Dimensions (l x w x h):

69.5 x 76.3 x 69.5 mm

Ignition protected:

ISO8846 / SAE J1171
