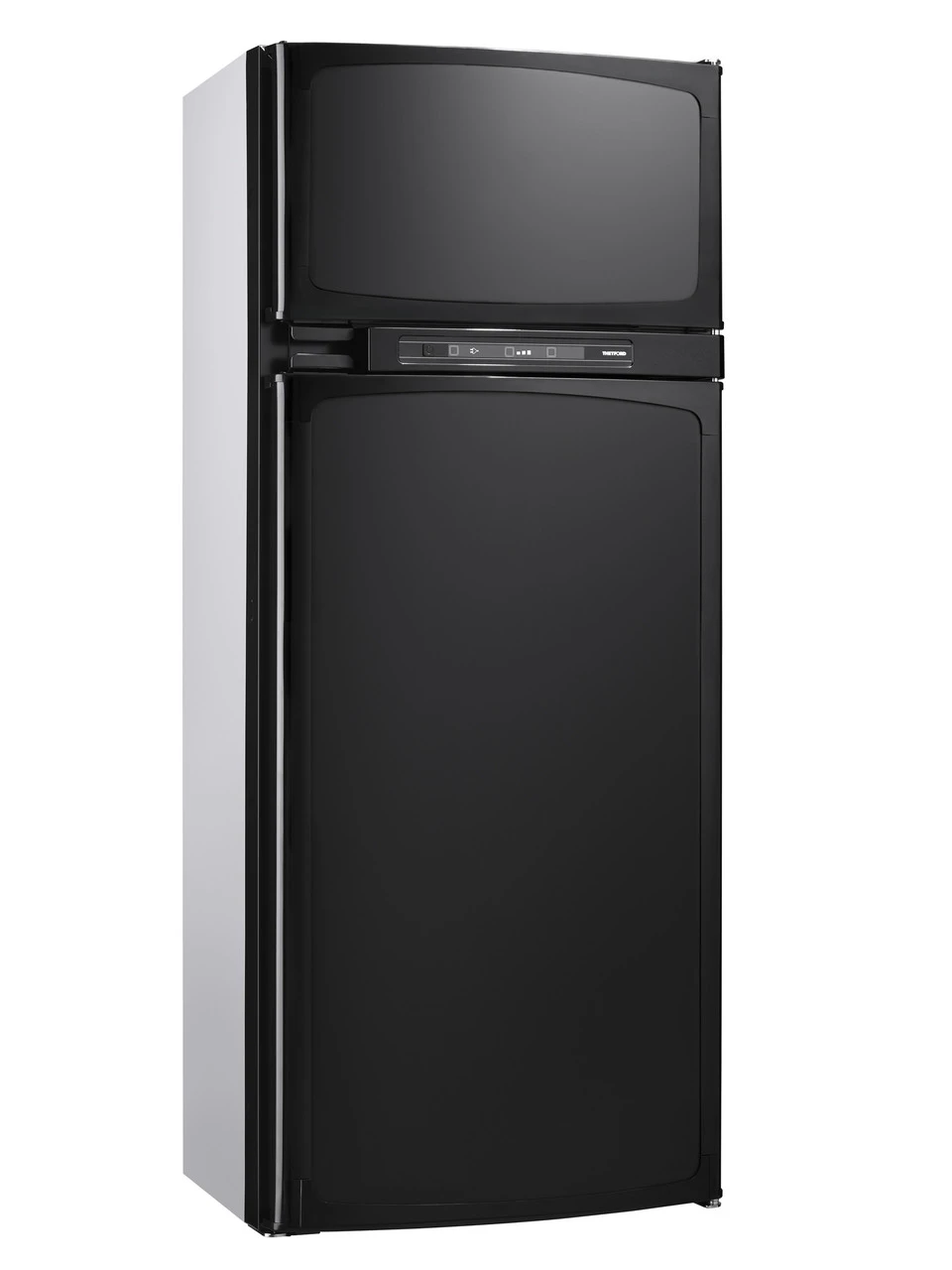

Thetford N4175 3-Way Caravan & Motorhome Fridge Freezer (Replaces N3175)

Featuring a large 175 Litre gross capacity, powerful cooling performance and stylish design, the Thetford N4175 3-Way Fridge is the replacement for the N3175 an attractive and user friendly caravan and motorhome fridge freezer.

The N4175 Absorption Fridge Freezer with a first class and peacefully quiet cooling performance

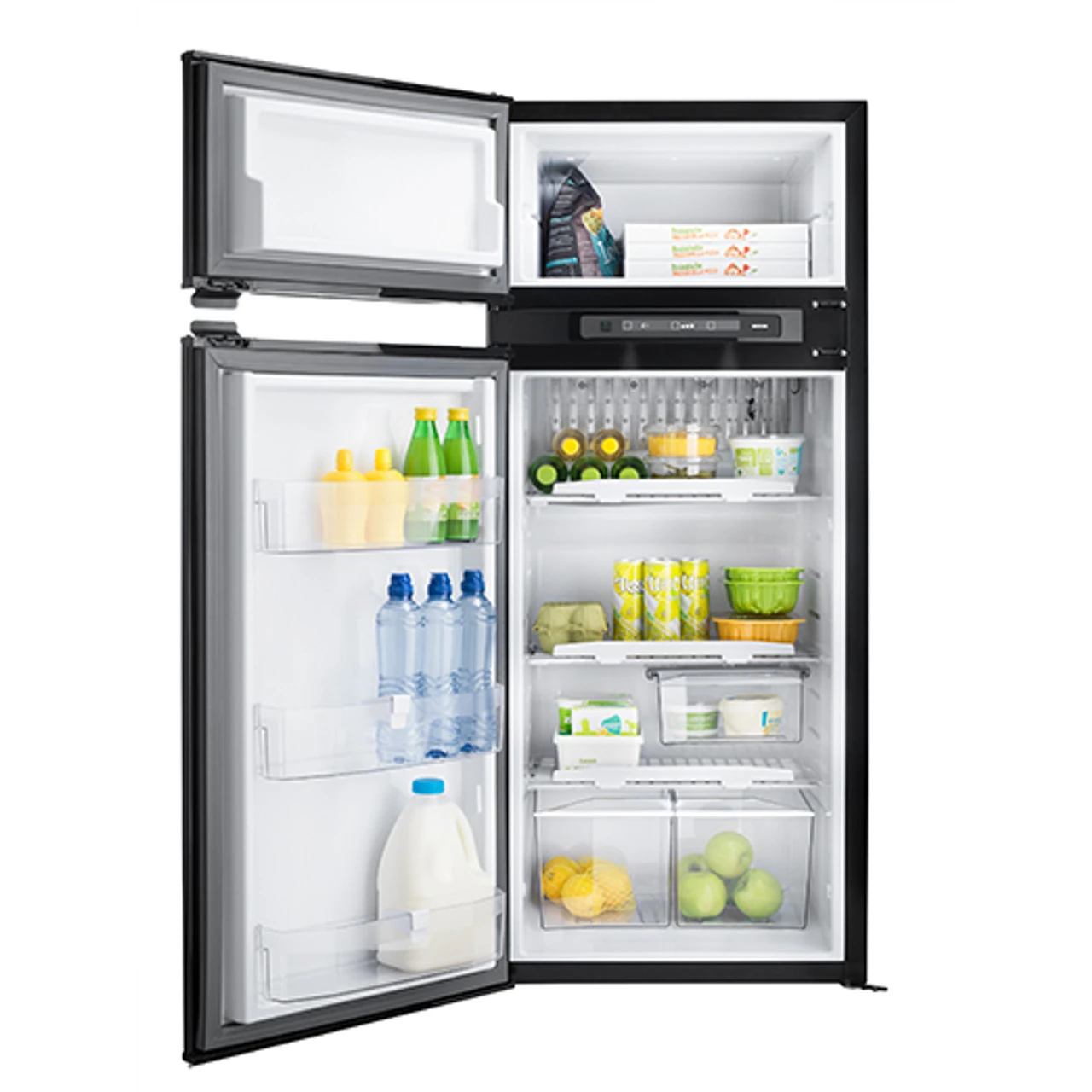

With a door that remains reliably sealed when closed as well as adjustable shelving, door bins and bottle slide, the Thetford N4175 3-Way Absorption Fridge will keep all your food and drink tidy, organised and secure, even whilst your motorhome or caravan is in transit.

For added convenience and usability, the Thetford N4175 3-Way Absorption Fridge also features a straight forward touch control panel, is available with automatic power source selection, and all models include fade in interior light. Additionally, the LCD version of the Thetford N4175 is available as a framed or frameless variant.

Please note: The Thetford N4175 is now available with a reversible hinge as standard.

The Thetford N4175 3-Way Caravan Fridge is the new version of the N3175, N175 and N180 Caravan Fridges.

Thetford LED (E+) control panel:

Thetford E model fridges, which were once manual, have now been replaced with the E+ range, which are automatic, making all of the fridges in the N4000 series fully automatic. The E+ models keep things simple with a sleek and clear LED display.

Thetford LCD (A) control panel:

The A model fridges are also fully automatic, and features an advanced LCD control panel for easier diagnostics and control.

Thetford N4175 3-Way Fridge Features

• Automatic power source selection
• Redesigned user display with touch control
• Fade-in interior light
• Securely closed door
• Flexible bottle slide
• 3 flexible white shelves & white door bins
• Black framed door & control panel
• Power cables and gas inlet tube at the bottom-backside of the fridge
• The N4175 comes with a 3-year guarantee and features the CE mark of quality, is CFC-free and almost entirely recyclable
• Please ensure you have measured the fridge correctly before purchasing, re-stock fees can apply if a fridge has been opened.
• All gas appliances must be fitted by a qualified gas engineer, failure to comply may affect your warranty.

Thetford had some production/supply issues with fridge shelves towards the end of last year and rather than withhold entire production of the fridges, they issued a number of them without. You should find a note in the fridge explaining how to order them FOC directly to you.

User Manual:



Installation Manual:

Spare Parts List & Exploded Diagram:

Technical Specifications:

Height (mm):

1245

Width (mm):

525

Depth (mm):

628

Operation:

Absorption

Total Volume:

175 Litres

Freezer Volume:

31 Litres

Wheel Arch Model:

No

Door Version:

Framed/Frameless Right & Left Hinge

Usable Power Source:

AC/DC Gas

N4175 Operation:

Automatic

Ignition:

Electric

N4175 Display:

LCD/ Touch Control/ Error Code Diagnostic

Energy Consumption:

4 kWh/24h

Energy Consumption Gas:

420 Grams/24h

Max Input 12V:

15.8 A/h

Max Input 230V:

1 A/h

N4175 Weight:

39.5 Kg
