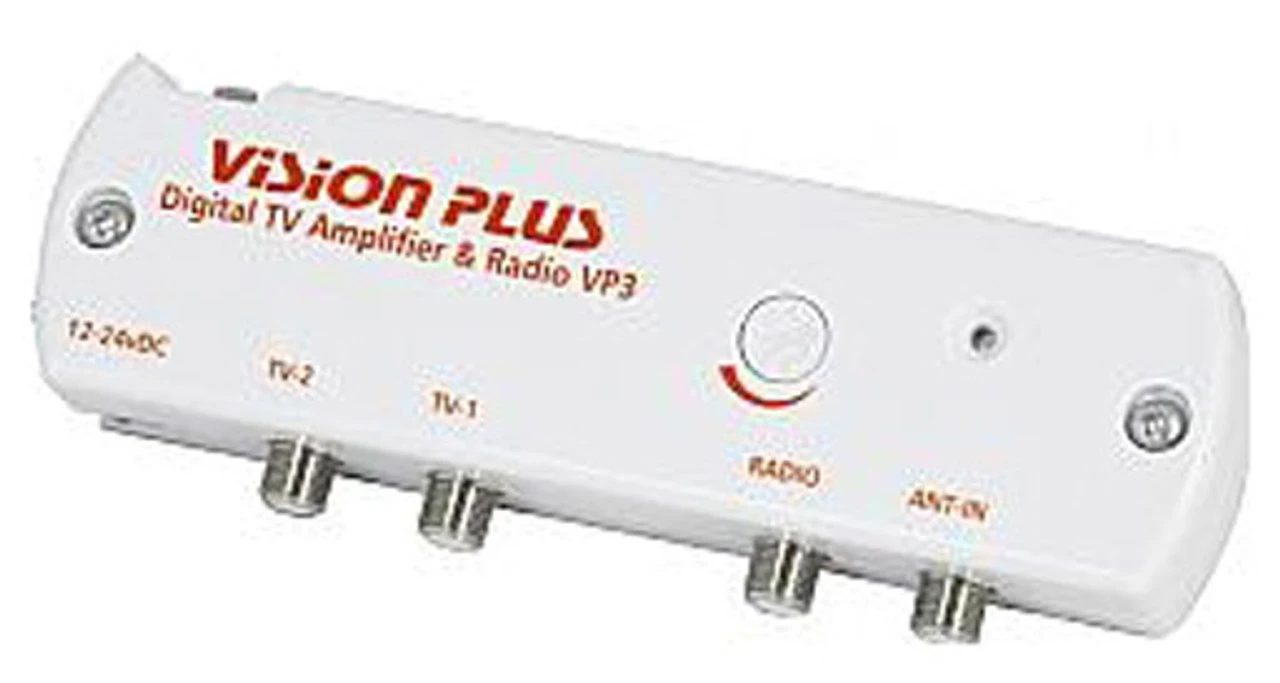

Vision Plus VP3 Digital Amplifier

The Vision Plus VP3 Digital Amplifier is for boosting the performance of all non amplified directional portable TV aerials. There is also a non-amplified outlet for FM Radio reception when used in conjunction with a UHF/FM antenna. The powerful little Vision Plus VP3 amplifier will provide great results performance especially in areas where reception is poor, allowing you to enjoy your caravan or motorhome break with clear tv reception.

Vision Plus VP3 Digital Amplifier Features:

    Variable gain control
    2 TV outputs
    1 FM Radio output
    Maximum Amplifier Gain 18db
    Gain Adjustment 16db
    Noise Figure 2db
    Output Impedance 75ohms
    Power Supply 10.8-28v DC
    Power Consumption 55ma
    Dimensions (mm) 157wx46hx28d

Caution

The Vision Plus VP3 is for use with any Status 315 330 or 530 where the logo on the antenna head is orange. The VP3 digital amplifier can also be used with the Image range of aerials.
