Dometic RM5330 230v 12v LPG Gas Caravan Fridge (Replaces Dometic RM4230)

The Dometic RM5330 is now discontinued. The closest alternative is the Vitrifrigo VTR5070 DG caravan fridge freezer.

The Dometic RM5330 is a wheel arch absorption fridge with a 70 Litre Capacity

Simple and straightforward to operate with its user friendly control panel and manual power source selection, the stepped Dometic RM5330 3-Way Absorption Caravan Fridge provides a high quality cooling performance alongside stylish and convenient features.

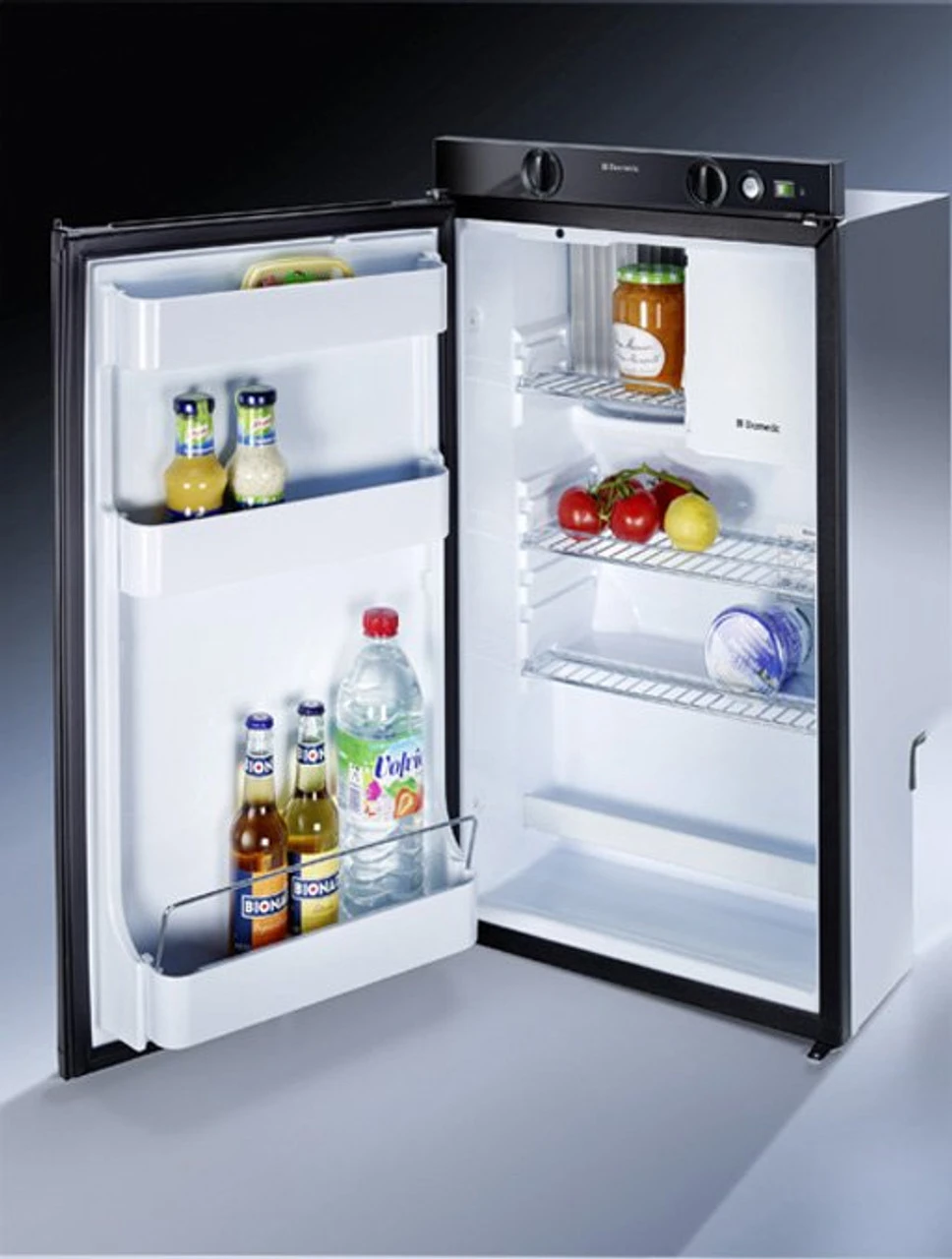

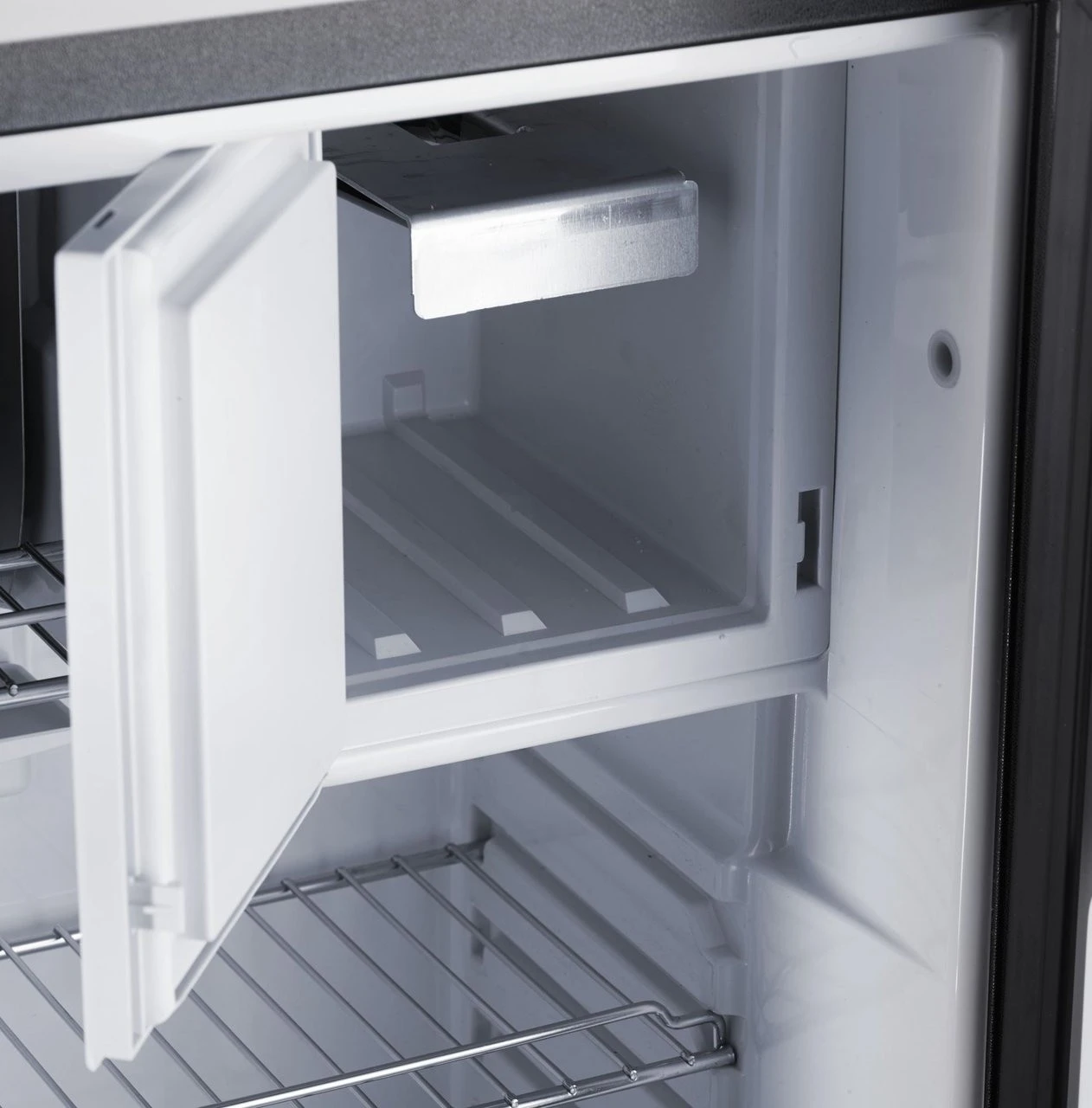

Boasting a separate 5 litre freezer compartment capable of freezing right down to -12° C, the Dometic RM5330 230v 12v LPG Gas Caravan Fridge also features an adjustable shelving system as well as a magnetic and manual mechanical safety lock / vent.

The Dometic RM5330 replaces the previous absorption fridge models; RM4230 and RM4233, and is exactly the same size.

With an internal LED light, changeable front panel as well as a galvanometer in the control panel allowing for easy monitoring of the LPG flame, the Dometic RM5330 230v 12v LPG Gas Caravan Fridge combines a stylish front with complete convenience.

The Dometic RM5330 Caravan 3 Way Absorption Fridge features include

• Absorption technology is Absolutely Silent!
• Ignition for lpg operation is provided by its own dry cell battery
• 70 Litres Total space, including a 5 Litre Freezer Compartment,
• Can be installed where there is no mains or 12v power supply,
• The unit must however still be properly fitted into a room sealed, and outside ventilated unit,
• A further rotary control sets the required temperature, which is maintained automatically by thermostatic control on mains and lpg gas
• The RM5330 comes complete with a ‘chimney-kit’ for the venting of heat and gases from the boiling tube,
• The top and bottom ventilation grill are extra and available on our related product pages
• All gas appliances must be fitted by a qualified gas engineer, failure to comply may affect your warranty.



*Wheelarch models have a section at the bottom rear of the cabinet cut away. This was traditionally used when the fridge was placed directly over the Caravan or Motorhome wheel and can also be utilised to clear warm/cold blown air trunking or even electrical cabling or water pipes.

User Manual:

Installation Manual:

Technical Specifications:

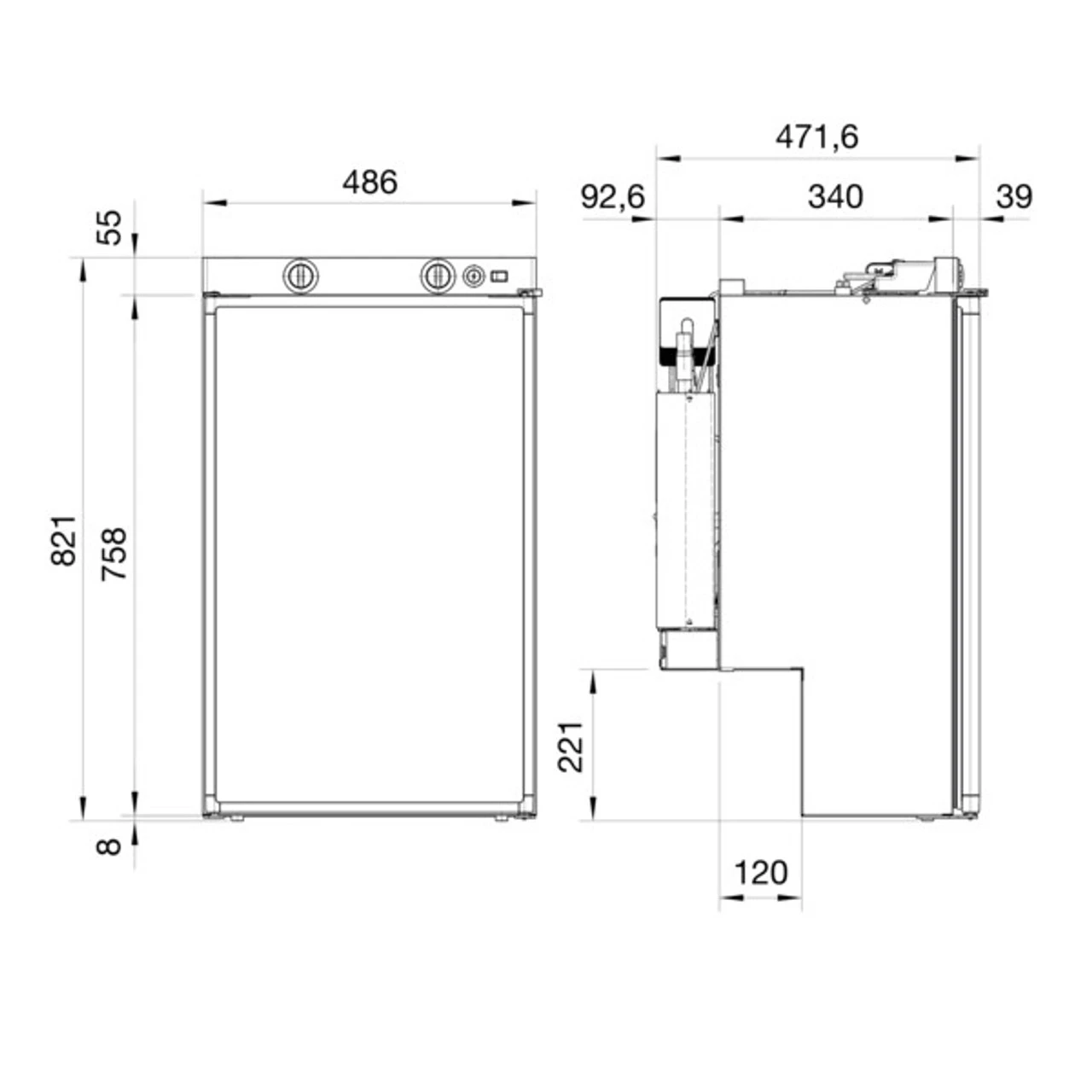

Height (mm):

821

Width (mm):

486

Depth (mm):

474

Operation:

Absorption

Approx Weight:

22 kg

Runs on:

12/24v DC & 230v Mains

RM5330 Capacity:

70 Litres

Cools to:

Fridge 7°C, Freezer -12°C

Connections:

12v, Mains & LPG
